NETBOX Smart

The timeless design of NETBOX Smart enhances any workplace. The elegant appearance is also emphasised by the smooth surface structure of the modules and end caps. As a 2-6-socket version, it offers many configuration options. In addition to simple adhesive fastening, NETBOX Smart can also be screwed on with fastening brackets. The pressure plate of the clamp protects your furniture.

Colors
black
silver
signal white
Request now

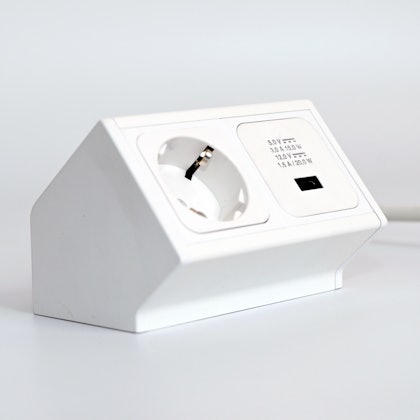

NETBOX Smart surface-mounted socket outlet with Schuko and USB-C charger in white
Keyfacts Examples Gallery Downloads
Technical Details
  • Hardwired starter or connector cable in different lengths
  • Data and multimedia connections with permanently mounted cables
  • Cable entry on the back
  • Use of “Standard” and “GL” modules possible
Characteristics
  • Variable length
  • New NETMODULEs with smooth surface
Methods of Fitting
  • Mounting with adhesive strips or c-clamp
Material
  • Housing: Aluminium
  • End caps: Plastic
  • Module: Plastic
Colors
  • Housing: silver, black*, white*
  • End caps: black, white*
  • Module: black, white

*Special colors

Example Configuration

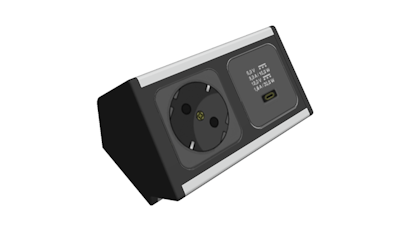

MOB2G2101Z
NETBOX

Item number MOB2G2101Z

Casing

For 2 modules. The modules are black, the chassis is in silver. The endcaps will be in black.

Power supply

Interlink cable with male GST 18/3, cable length app. 900 mm

Wiring

1,5 mm²

Fitting

1 x Schuko (diagonal)

USB-charger Type C: 1 x USB Type C, max. 20 W

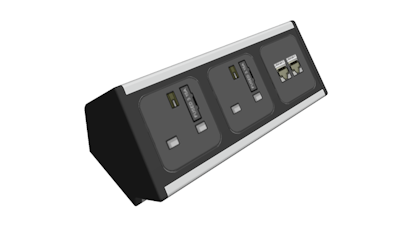

MOB3G13X3Z
NETBOX

Item number MOB3G13X3Z

Casing

For 3 modules. The modules are black, the chassis is in silver. The endcaps will be in black.

Power supply

Interlink cable with male GST 18/3, cable length app. 900 mm

Wiring

1,5 mm²

Fitting

2 x GB-Y fused @ 3,15 Amps (vertical)

2 x RJ45 Cat. 6 shielded (Nexans). Input data: 2 x patch-cord with male RJ45-connector, cable length app. 3500 mm

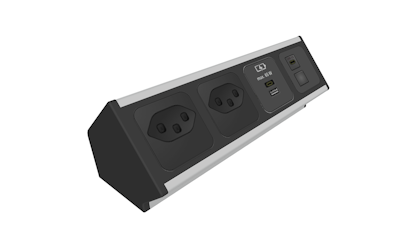

MOB4H1376Z
NETBOX

Item number MOB4H1376Z

Casing

For 4 modules. The modules are black, the chassis is in silver. The endcaps will be in black.

Power supply

Interlink cable with male GST 18/3, cable length app. 1.900 mm

Wiring

2,5 mm²

Fitting

2 x CH-23 (vertical)

1 x USB-charger Type A + C, 65 W

1 x USB C. Input USB: 1 x USB-cable with USB C-connector, cable length app. 400 mm

General Product and Material Information

Markings and Approvals Smart

Downloads

Documents

Dimensions NETBOX Smart
pdf | 70 KB
Specification sheet NETBOX Smart
pdf | 858 KB

Certificates
