NETBOX MEB

Many applications require a space-saving and economical socket combination. The plug-in connection system significantly reduces the installation cost. The NETBOX MEB is available in 2-, 3- and 4- unit version. It requires an installation depth of only 30 mm and is ready for use with a mounted starter or connection cable. The space-saving design and a selection of over 250 NETMODULE make it a multi-talent.

Colors

black

white

grey

Keyfacts Examples Gallery Accessories Downloads

Technical Details

GST-18 connector

Characteristics

Connectable through connector system
All power cables are hardwired
Customized cable lengths
Flexibility through the use of interchangeable modules

Methods of Fitting

Mounting via screw holes hidden under frame

Material

Frame: Plastic
Module: Plastic

Colors

Frame / Module: grey, black, white
Housing: black

Example Configuration

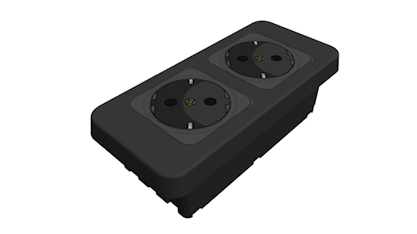

2683G15013

NETBOX

Item number 2683G15013

Casing

For 2 modules, the modules and also the body are in black.

Cutout dimension

112,5 x 52,5 mm

Power supply

Power input: Interlink cable with male GST 18/3, cable length app. 900 mm

Power output: Interlink cable with female GST 18/3, cable length app. 900 mm

Wiring

1,5 mm²

Fitting

2 x Schuko (diagonal)

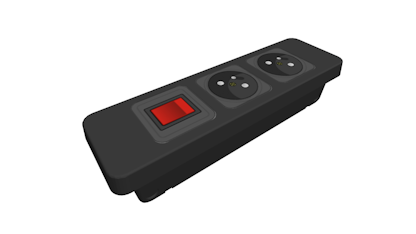

2E19G15053

NETBOX

Item number 2E19G15053

Casing

For 3 modules, the modules and also the body are in black.

Cutout dimension

193,5 x 52,5 mm

Power supply

Interlink cable with male GST 18/3, cable length app. 400 mm. NO power Output.

Wiring

1,5 mm²

Fitting

1 x Switch 2-pole illuminated (horizontal). Switch function: Sockets switched. If there's a female connector after this switch, it is always powered.

2 x BEK (diagonal)

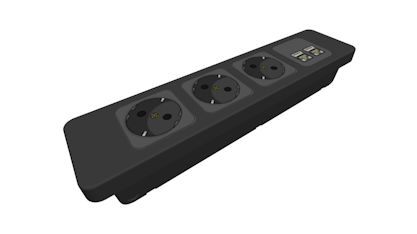

MV89G12013

NETBOX

Item number MV89G12013

Casing

For 4 modules, the modules and also the body are in black.

Cutout dimension

246,5 x 52,5 mm

Power supply

Interlink cable with male GST 18/3, cable length app. 400 mm. NO power Output.

Wiring

1,5 mm²

Fitting

3 x Schuko (diagonal)

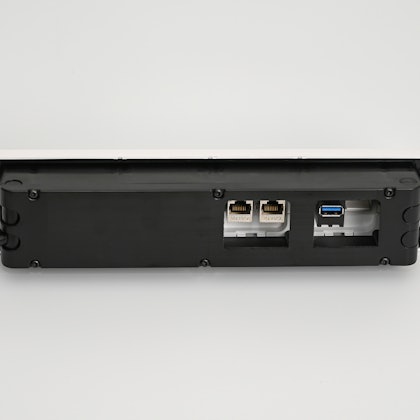

2 x RJ45 Cat. 6A shielded coupler. Input data: 2 x RJ45 Cat. 6A shielded gender changer (female-female-connector)

Accessories for NETBOX MEB

NAK international

NETCONNECT Starter cables

Starter cables with international plugs
With connectors or free end for hard wiring

VK GST

NETCONNECT Connector cables

Connector cables available in various configuration
Connector cable male-female, can be customized or moulded

Small distributor

NETSYSTEM Light Terminal Box VR

Small distributor
Suspended ceiling
